LE ROUGE
THE OHIO STATE UNIVERSITY - YEAR 4
LE ROUGE IS A SPEAKEASY INSPIRED BAR DESIGNED TO EXPLORE HOW LIGHTING SHAPES ATMOSPHERE MOOD AND EXPERIENCE. THE PROJECT FOCUSES ON CREATING AN INTIMATE DRAMATIC ENVIRONMENT THROUGH LAYERED ILLUMINATION WARM COLOR TEMPERATURES AND CONTROLLED CONTRAST. LIGHTING IS USED NOT ONLY FOR VISIBILITY BUT AS A PRIMARY DESIGN ELEMENT TO ENHANCE MATERIAL RICHNESS GUIDE CIRCULATION AND ESTABLISH A SENSE OF MYSTERY AND ALLURE WITHIN THE SPACE.
THE DESIGN PRIORITIZES A BALANCE BETWEEN AMBIENT ACCENT AND DECORATIVE LIGHTING TO SUPPORT BOTH SOCIAL GATHERING AND PERFORMANCE MOMENTS. THROUGH DIM TO WARM FIXTURES CONCEALED LINEAR LIGHTING AND TARGETED FOCAL POINTS LE ROUGE CREATES A CINEMATIC EXPERIENCE THAT FEELS IMMERSIVE REFINED AND INTENTIONAL.
SOFTWARE: REVIT, ENSCAPE
SERVICES: INTERIOR DESIGN, LIGHTING DESIGN STRATEGY, MATERIAL AND FINISH SELECTION, LIGHTING DOCUMENTATION, 3D MODELING AND RENDERING
YEAR: 2025

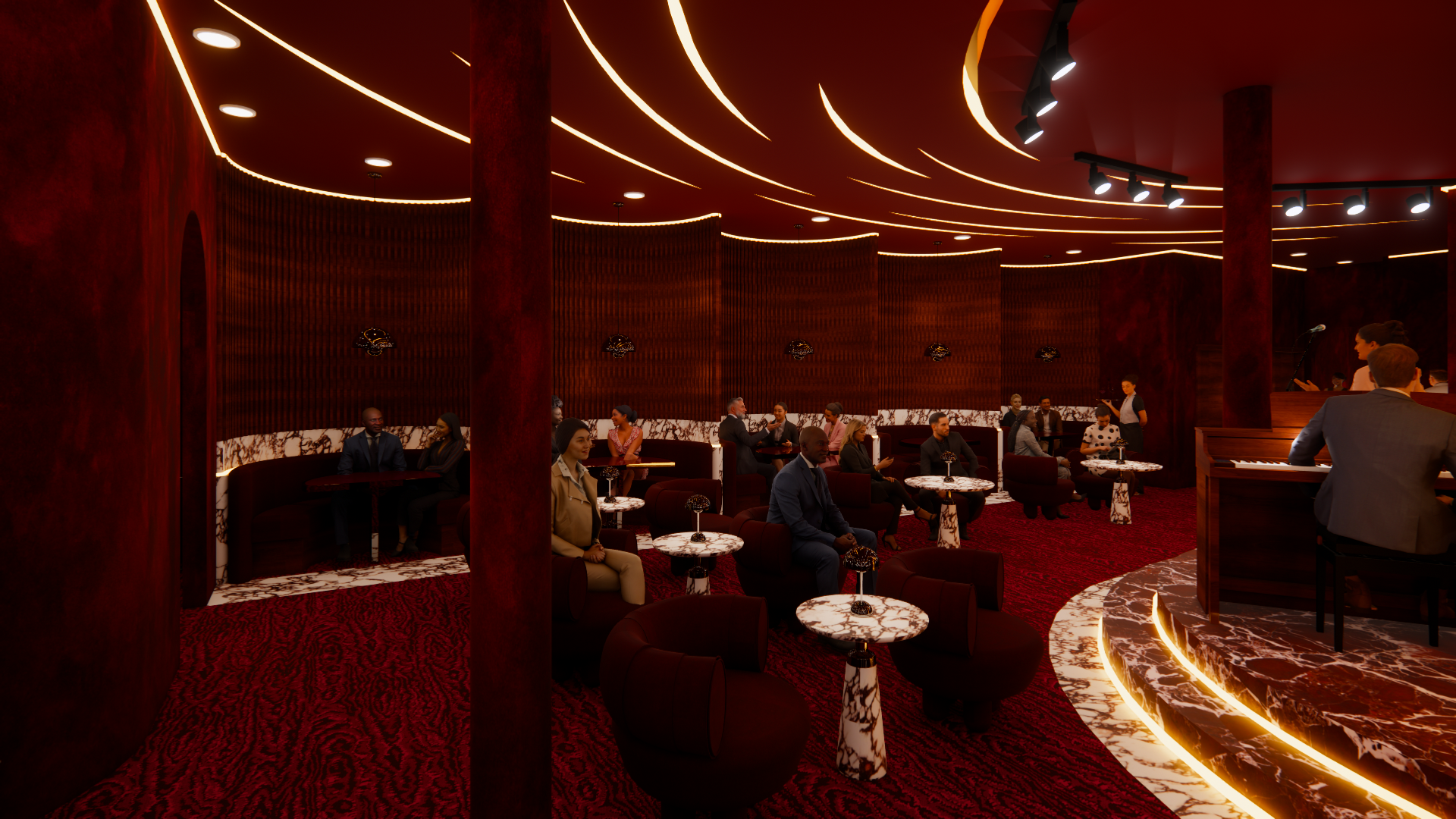

THE VISION AND LIGHTING CONCEPT FOR LE ROUGE DRAW FROM SPEAKEASY CULTURE TO CREATE A MOODY AND INTIMATE ATMOSPHERE. WARM LAYERED LIGHTING DEFINES THE SPACE AND ENHANCES MATERIAL RICHNESS THROUGH VELVET UPHOLSTERY POLISHED STONE AND METALLIC ACCENTS. LIGHT IS USED TO CREATE DEPTH FOCAL POINTS AND A SENSE OF DRAMA WHILE SUPPORTING SOCIAL GATHERING AND PERFORMANCE WITHIN THE SPACE.
VISUAL POSITIONING BOARD
LIGHTING INSPIRATION BOARD
MATERIAL PALETTE
THE ARCHITECTURAL AND LIGHTING PLANS OUTLINE SPATIAL ORGANIZATION, CEILING CONDITIONS, AND LIGHTING CONTROL STRATEGIES THAT SUPPORT THE OVERALL EXPERIENCE OF THE SPACE.

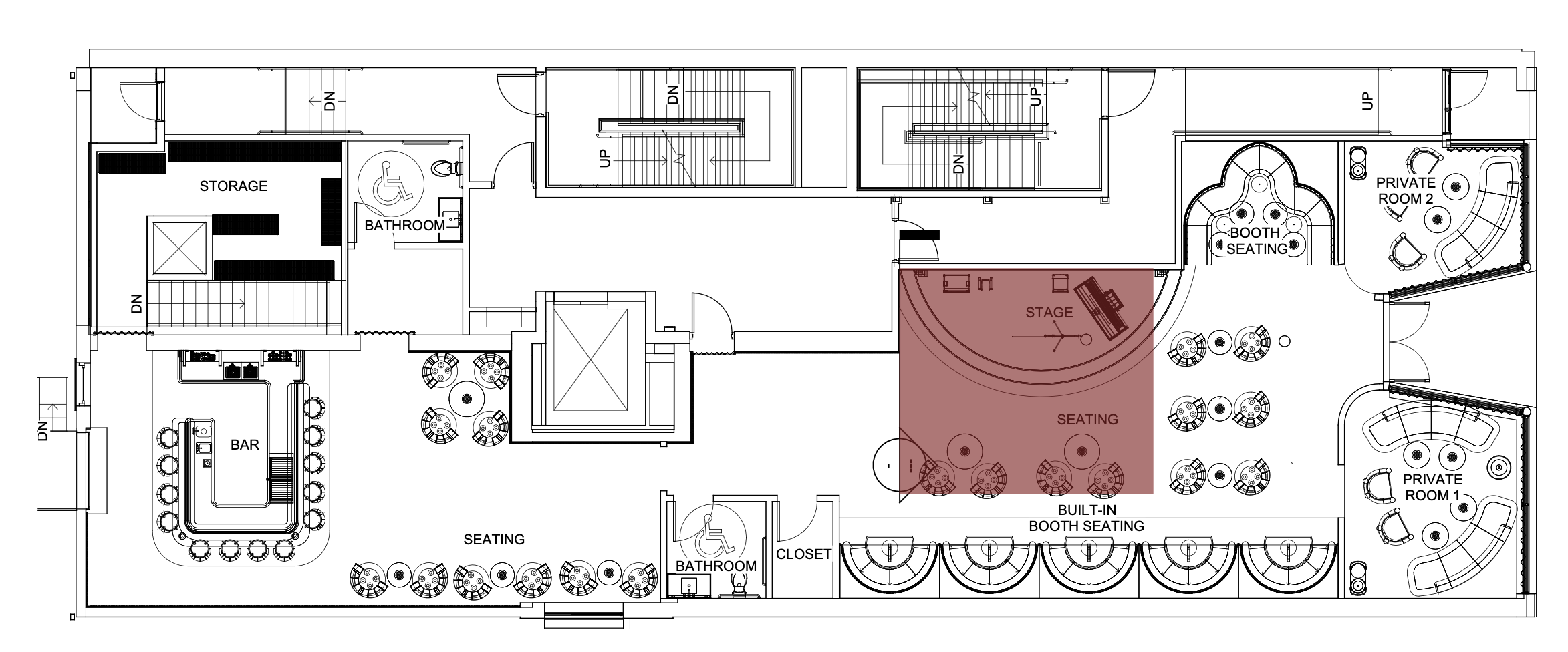

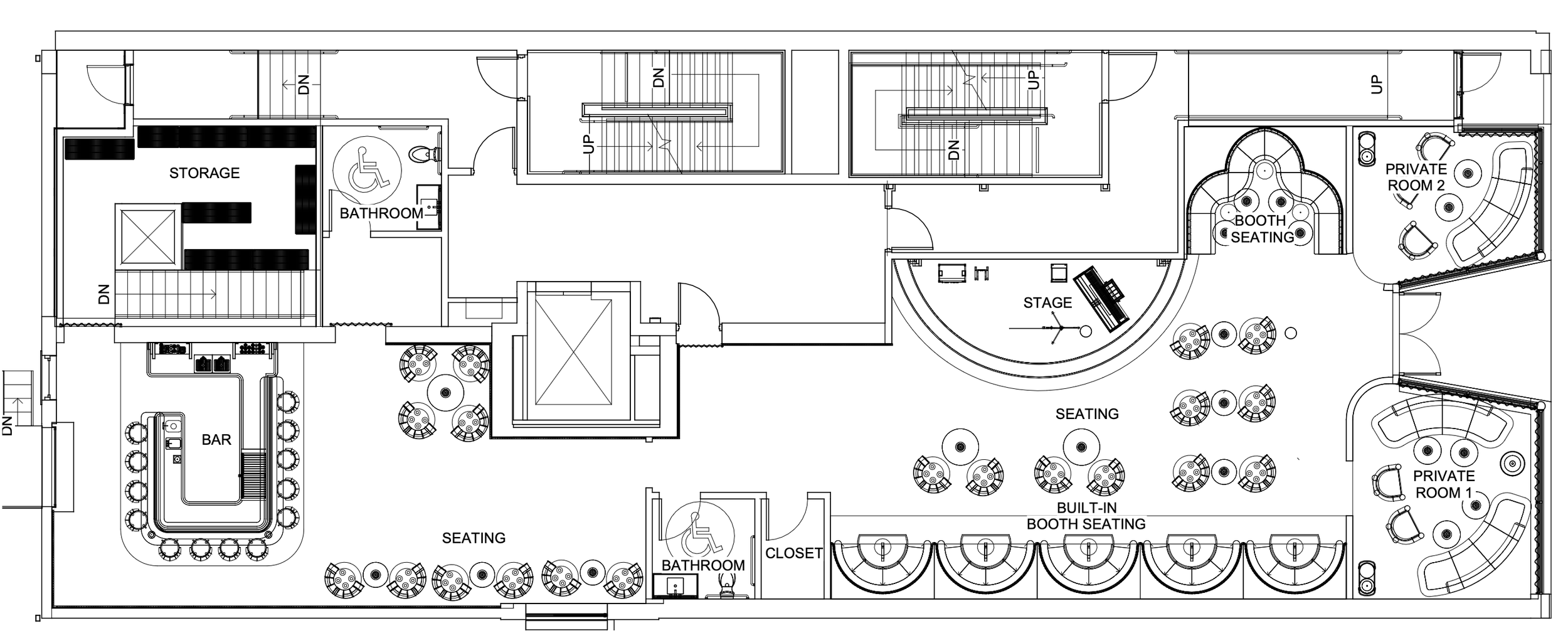

FLOOR PLAN

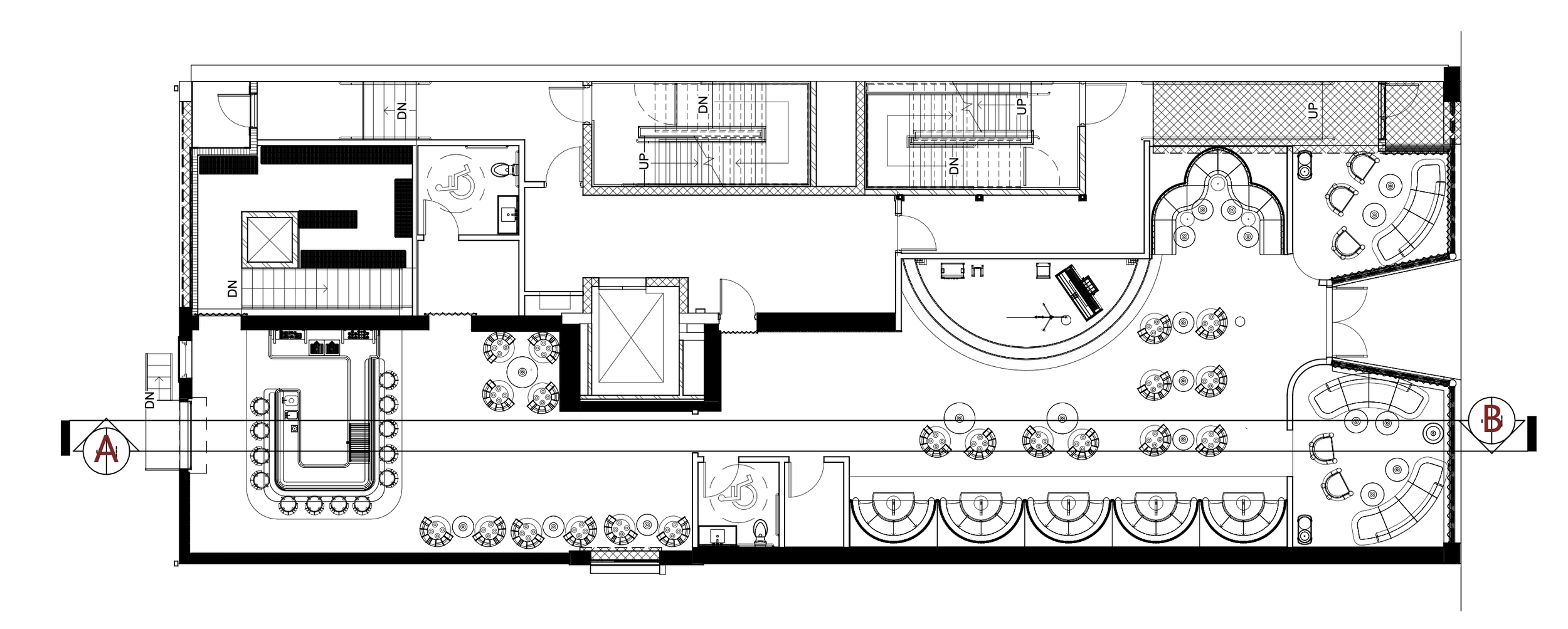

FLOOR PLAN - LIGHTING PLAN
REFLECTED CEILING PLAN

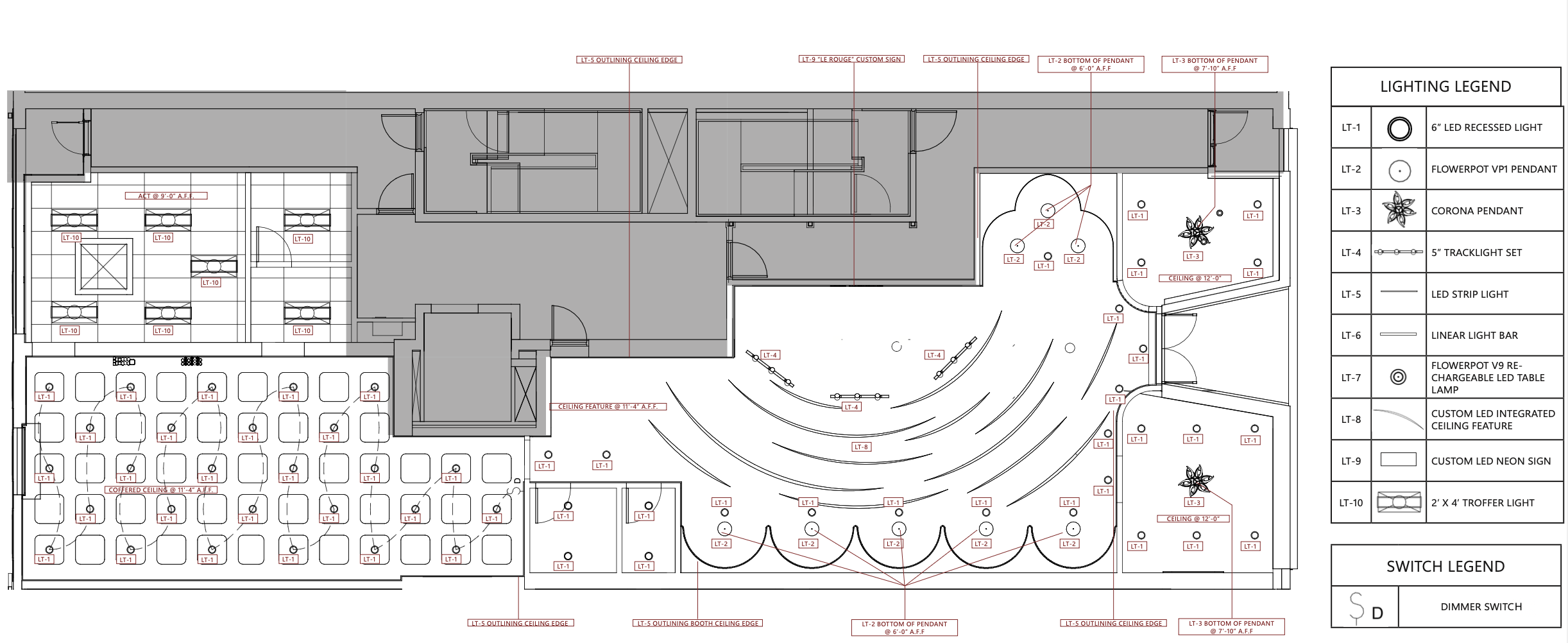

BAR ROOM SWITCH PLAN
THE ARCHITECTURAL AND LIGHTING PLANS OUTLINE SPATIAL ORGANIZATION, CEILING CONDITIONS, AND LIGHTING CONTROL STRATEGIES THAT SUPPORT THE OVERALL EXPERIENCE OF THE SPACE.

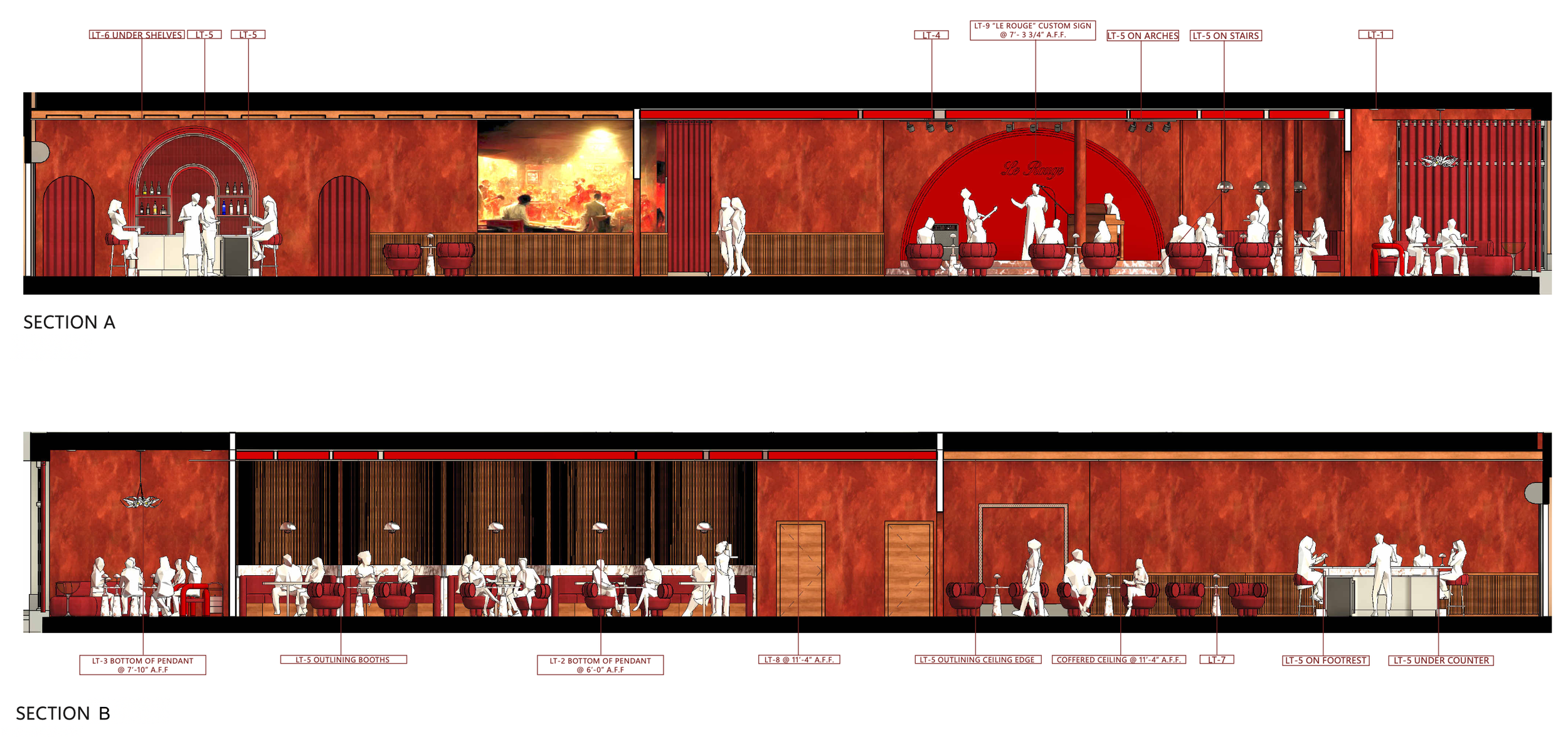

SECTIONS

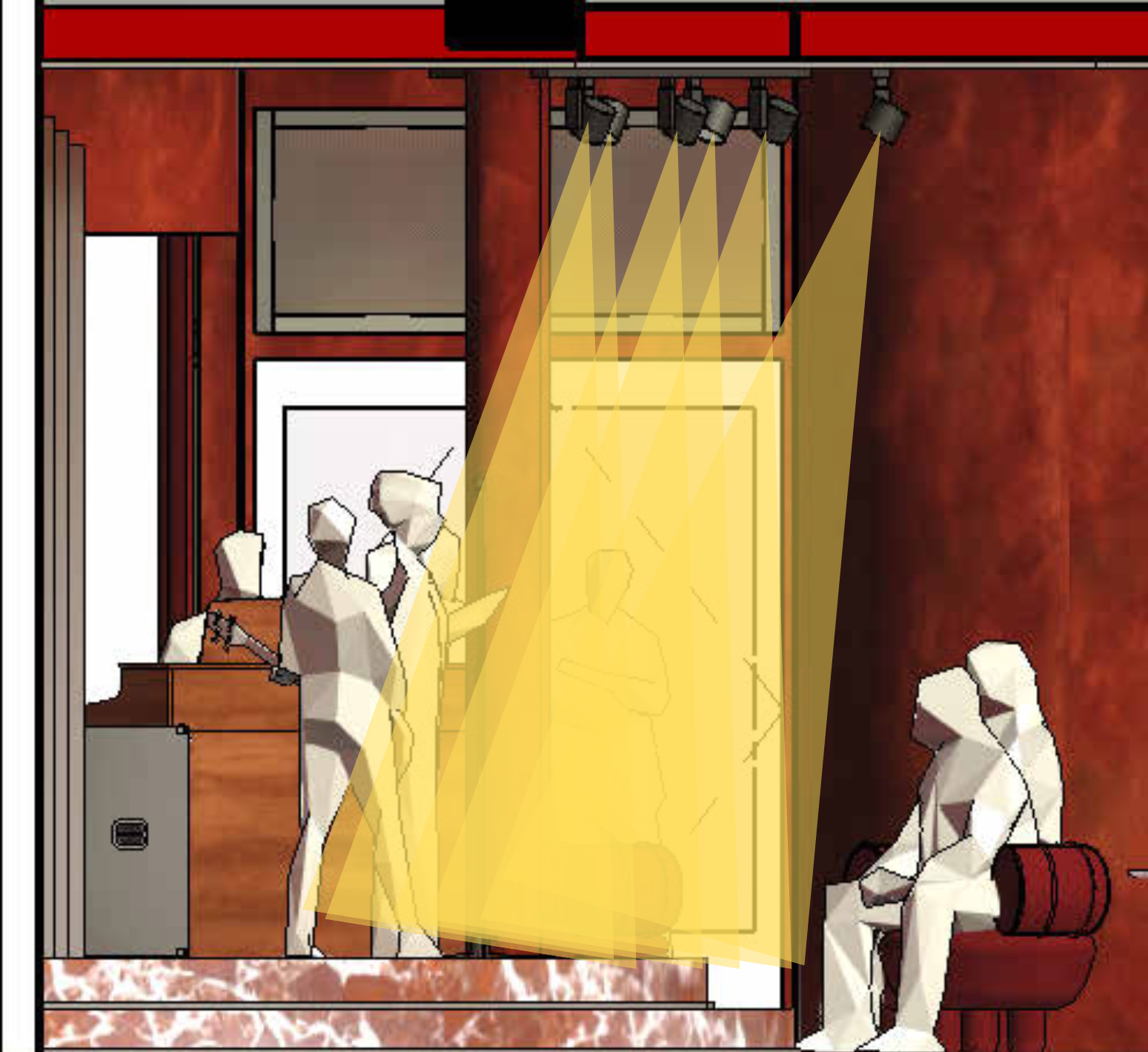

AIMING ELEVATION
Track lighting is arranged to follow the arched geometry of the stage and is located 1 foot from the bottom step. Adjustable track heads are aimed downward at approximately 30 to 35 degrees to evenly illuminate the performance area. Fixtures are evenly spaced to reinforce the stage form, provide focused visibility for performers, and maintain an intimate speakeasy atmosphere with controlled glare.

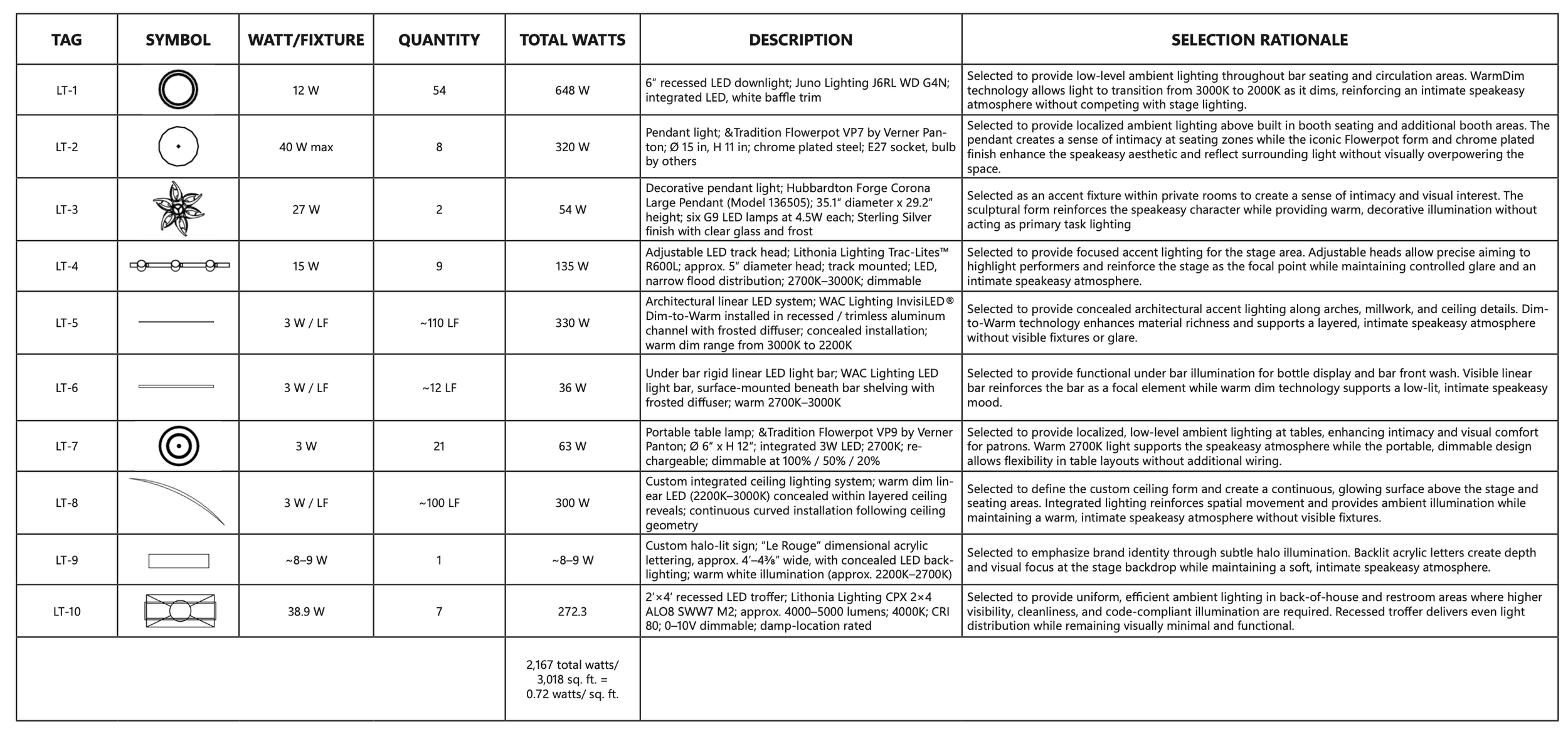

Lighting Schedule

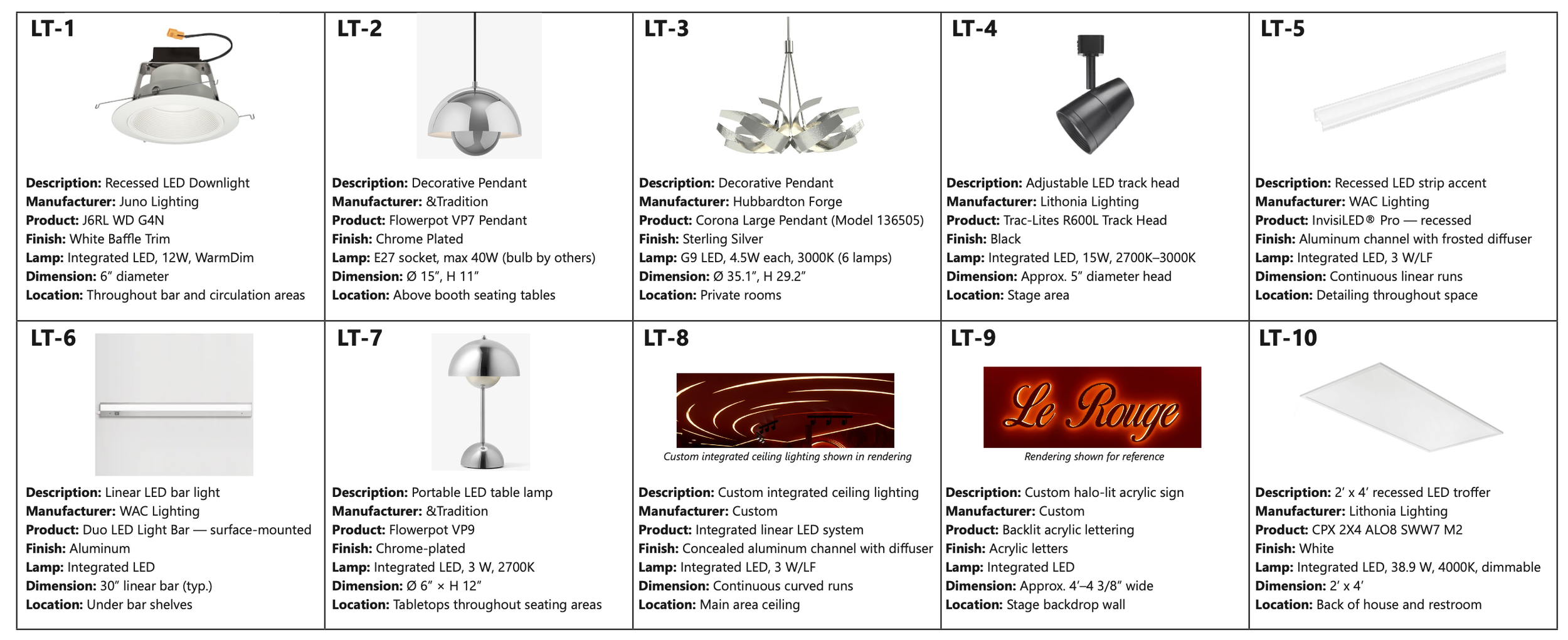

Specifications Cut Sheet
